8014 Compact Prodcution Lab IR Furnace

RTC LA-306 Infrared Furnace

S/N:13008

1000°C, 3-Zone

Nitrogen Atmosphere

208 Vac, 3 Ph, 50/60 Hz

40" cooling Factory rebuilt with all new electronics

  • Production and Laboratory Applications
  • Controlled CDA, N2, and/or FG Atmosphere
  • Brand New Discrete Digital Control System
  • New furnace chamber internals & cooling system
  • Special SS exit UNLOAD extension

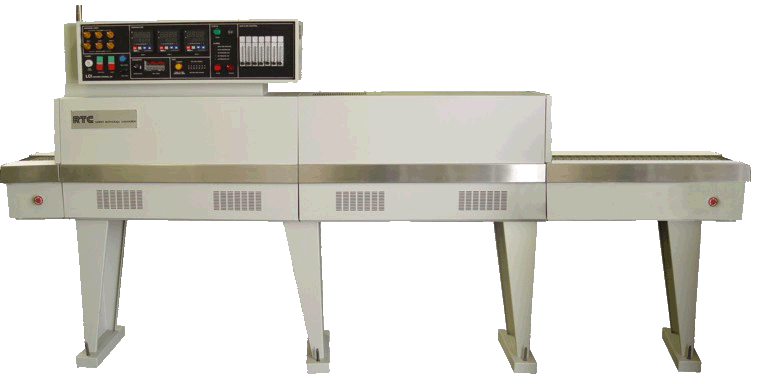

RTC LA-306CXX IR Furnace

8014-RTC-LA-306-BELT-FURNACE

This special RTC LA-306 with a 38-inch UNLOAD station recently underwent complete reconditioning in the factory.

At 50-60% of the price of a new furnace, you get a furnace that can be used for another 10-15 years with an all new control system, new furnace chamber internals and all new aircraft aluminum cooling section. These units are fully tested to RTC oem factory specifications and are guaranteed functional for one year from date of receipt.

Compact High Temperature Infrared Thermal Processing Belt Furnace

True near-infrared furnace.The LA-306 is a compact high temperature production and laboratory infrared furnace. The small 6 inch wide chamber offers excellent temperature control and rapid rise to 1000°C . Process atmosphere is controlled much like a clean room: pressurized gas is pushed through the heating chamber insulationproviding a pre-heated, laminar flow for a uniform, stable atmosphere. Precise temperature is maintained by control thermocouples above the belt in each zone quickly sensing changing conditions. IR quartz heating lamps inside the chamber instantaneously adjust their output to achieve tight temperature control: each load through the furnace sees the same temperature. The small size and furnace chamber assures good temperature control with efficient use of power and proces gas.The LA-306 furnace can be configured for one gas (CDA, Nitrogen) or dual gas operation (nitrogen and forming gas).The furnace is operated via individual digital PID controllers to control the temperature in each zone.For efficiency and smooth control, phase-angle fired SCR's are used to power the lamps.

Process Applications

The LA-306 can process substrates, wafers, PCBs, metal, ceramic, glass or polycarbonate parts for Package Sealing, Epoxy Die Attach, Polymer Curing, Reflow Soldering, Hybrid/Thick Film Firing, General Thermal Processing, Brazing, Annealing, Tempering andMetal Sintering applications.

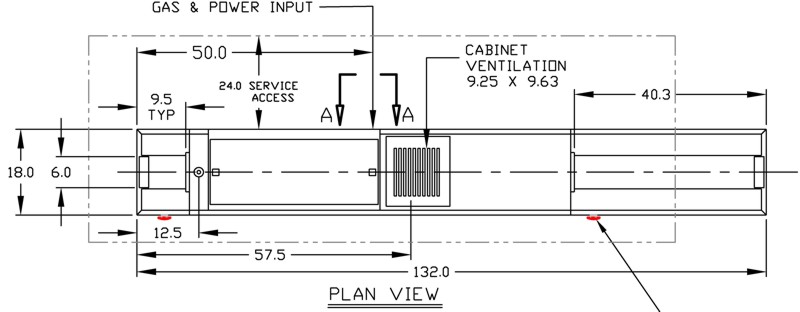

Furnace Arrangement

THERMAL PROCESSING

Parameter RTC LA-306
Load Station 215 mm (8.5 inches)
Entrance Isolation Baffle with Venturi Exhaust 159 mm (6.25 inches)
IR Heating Chamber, Zone 1 168 mm (6.6 inches)
IR Heating Chamber Zone 2 363 mm (14.3 inches)
IR Heating Chamber Zone 3 168 mm (6.6 inches)
Transition Tunnel (with optional Venturi Exhaust) 159 mm (6.25 inches)
CACT Closed Atmosphere Cooling Chamber 1015 cm (40 inches)
Unload Station 215 mm (8.5 inches) /with extension 9.78 mm (38.5 inches)

RTC LA-306 Furnace Internals

8014-RTC-LA-306-BELT-FURNACE 8014-RTC-LA-306-BELT-FURNACE 8014-RTC-LA-306-BELT-FURNACE

Specifications

Parameter LA-306
Process Gas CDA, Nitrogen (-N), Forming Gas with premixed Hydrogen and Nitrogen (-FG)
Control Zones 3 zones
Heating Chamber length 700 mm (27.5 inches)
Cooling Chamber CACT – CDA or N2 convective and radiant cooling, exterior fan heat removal.
Belt Speed 25-500 mm/min (1-20 ipm) or 25-1000 mm/min (2-40) ipm (other speeds available)
Conveyor Belt BNV- low mass, stabilized Nichrome-V
Belt Size, nominal width 150 mm (6 in.)
Exhaust Improved venturi exhaust stacks to reduce process gas consumption.Number of stacks vary with process requirements.
Temperature Capacity, max 1000°C
Electrical Single phase design.However, NEWLY UPGRADED FROM SINGLE PHASE TO 3-PHASE. All models include universal transformers which will accommodate 208-240 Vac and 50/60 Hz frequency anywhere in the world -allowing furnace relocation without external equipment. IR lamp controls automatically keep IR spectrum constant.

Power Requirements

Parameter RTC LA-306 MaximumConnected Power/Current Operating Current @ 950C
3-Phase Power 208 Vac, 3 ph, 50/60 Hz 14.0 kW 26.0 A

Facility Requirements

Parameter Process Section Typical (CDA exchange rate: 2x)425 C operation, balanced flow Typical (N2 exch rate: 3x) 950 C, low O2, 25 sLpm excess flow
Process Gas Supply
Process Gas 80 Lpm @ 5 bar(170 SCFH @ 70 psig) 146 Lpm @ 5 bar(308 SCFH @ 70 psig)
Enclosure Ventilation Furnace Cabinet Fan (1)vent to room or facility exhaust system 930 m3/hr @ 30°C (550 cfm @ 86°F )
Control Cabinet Fans (2)(vents to room) 360 m3/hr @ 30°C (212 cfm @ 86°F )
Process Gas Exhaust Process Gas 80 Lpm(170 SCFH) 95 Lpm(202 SCFH)

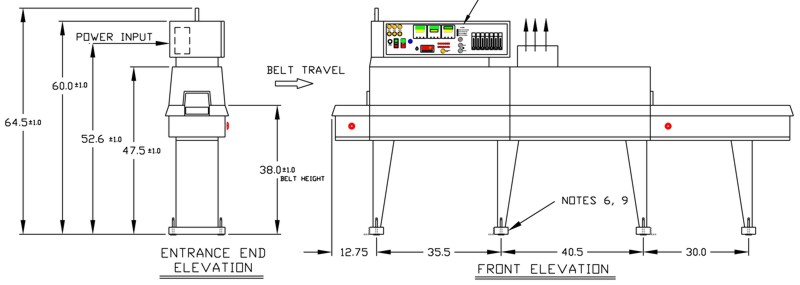

Dimensions

Parameter RTC LA-306
Length With 30-inch unload extension: 3.35 m (132 in.)
Width 0.46 m (18 inches)
Height 1.64 m +/- 0.0254 (62.25 inches +/- 1.0)
Adjustable Conveyor Height 965 mm +/- 25.4 (38 inch +/- 1.0)
Weight 370 kg (800 LB)

Ready to Ship! This special RTC LA-306 with a 38-inch UNLOAD station recently underwent complete reconditioning at the factory.
