14753 Laboratory Box Furnace

General Purpose Chamber Furnace

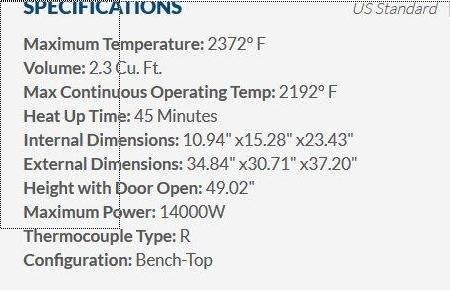

Specifications

1300°C Peak Operating Temperature
1200°C Maximum Continuous
14 kW, Fast 45 minute heatup
23.4" W 15.3" L x 11" H ID (65 liters)
30.7" W x 37.2" W x 34.8" H OD

• Rugged construction for heavy-duty heat treating requirements.
• High power free radiating side heating elements provide fast heat-up and enhanced chamber uniformity.
• Vertical lift door design keeps hot door insulation away from operator.
• Low thermal mass insulation improves energy efficiency and fast heat-up rates.
• Hard ceramic hearth provides excellent resistance to wear and spillage.
• Long-life heavy gauge coil heating elements.
• Chamber vent provides for process exhaust.
• Dense refractory around chamber entrance resists abrasion and wear.
• Positive break door safety switch isolates power to the heating elements when door is opened.
• Low outer case temperature provided through double shell construction.
• Small case size conserves bench space.

Application examples

• Aging; Annealing; Curing
• Firing / Sintering; Foundry or Melting Furnace;
• Heat Treatment;
• Laboratory; Debonding, Digestion, Ignition Test
• Burn-off processes which create a lot of fumes. Melting different kinds of glass which emit aggressive gases.
